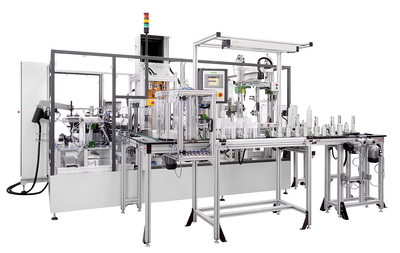

Assembly and Test Station for a Auto-Flush Valves in Toilet Bowl Tanks

Required Process:

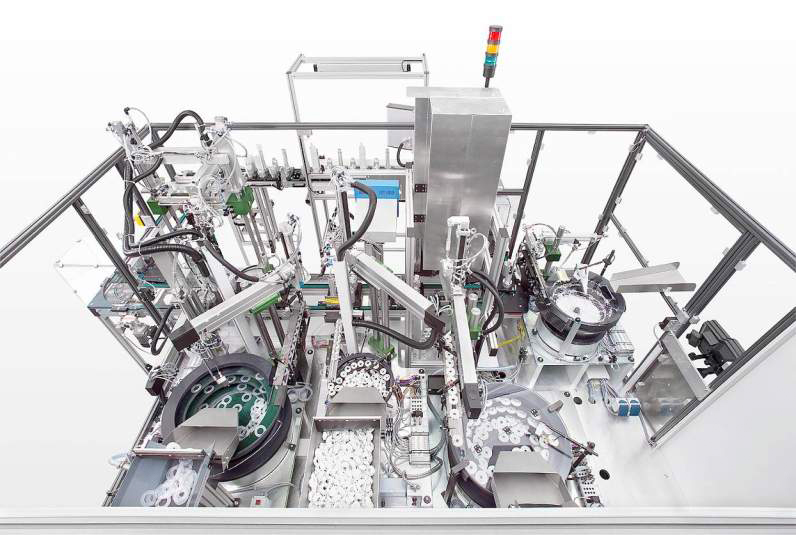

The assembly cell consists of three (3) different stations:

• Linear Transfer System [LTS] for the assembly of 8 components
• Rotary Index Table [RIT] for the assembly of 9 components
• Test Station based on the modular system DCAM (DEPRAG COMPACT ASSEMBLY MODULE)

Integrated Processes:

• Feeding Technology
• Positioning Systems
• Cutting of hoses
• Ultrasonic welding
• Spring coiling
• Wire cutting
• In-process control
• Sorting
• Unloading
